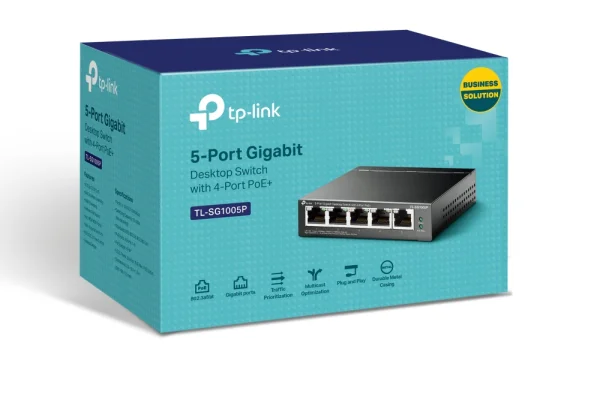

Tp-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+
Tp-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+
Brands: TP LINK
Availability: In Stockد.إ 119.00
- Free delivery over 200
- 7 Days Return Period
- Customer support+971502525069
Guarantee Safe & Secure Checkout
Description
Specifications
Specifications
Hardware Features
| Interface | • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP Cat 3, 4, 5 (max 100m), EIA/TIA-568 100Ω STP (max 100m) • 100BASE-TX: UTP Cat 5, 5e (max 100m), EIA/TIA-568 100Ω STP (max 100m) • 1000BASE-T: UTP Cat 5, 5e, 6 or above (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 7.44 Mpps |

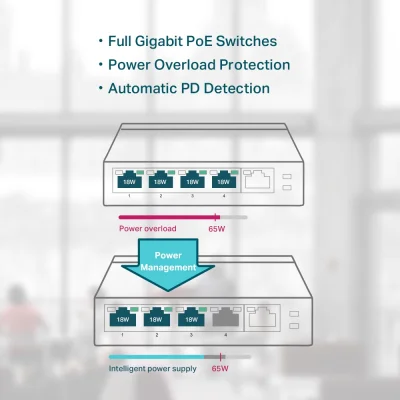

| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
| Max. Power Consumption | • 4.29 W (220V/50Hz, no PD connected) • 74.24 W (220V/50Hz, with 65 W PD connected) |
| Max. Heat Dissipation | • 14.63 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) |
Software Features
| Advanced Features | • Compatible with IEEE 802.3af/at Compliant PDs • MAC Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission Method | Store-and-Forward |
Others
| Certification | FCC, CE, RoHS |
| Package Content | • TL-SG1005P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
