| WIRELESS |
|---|
| Standards and Protocols | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000
5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps |
| WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas
Beamforming
High-Power FEM |
| WiFi Capacity | High
Dual-Band
OFDMA
Airtime Fairness
DFS
4 Streams |
| Working Modes | Router Mode
Access Point Mode |
| SECURITY |
|---|
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| HomeShield Security | Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention, DDoS Prevention, Home Network Scanner |
| Guest Network | 1× 5 GHz, 1× 2.4 GHz |
| VPN Server | OpenVPN, PPTP VPN |
| WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise |
| HARDWARE |
|---|
| Processor | Dual-Core CPU |

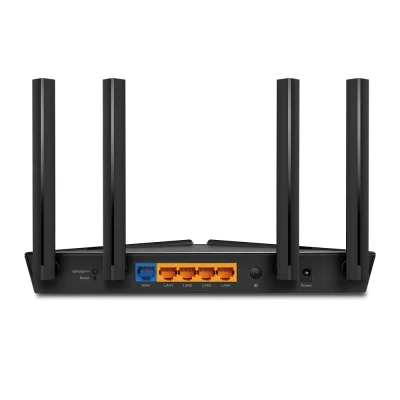

| Ethernet Ports | 1× Gigabit WAN, 4× Gigabit LAN |
| Buttons | Wi-Fi/WPS, Power On/Off, LED On/Off, Reset |
| Power | 12 V ⎓ 2 A |
| SOFTWARE |
|---|
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | Supported |
| EasyMesh | Supported |
| Parental Controls | Custom Profiles, Content Filter, Family Time, Time Controls, Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy/Snooping, Bridge, VLAN |
| DHCP | Address Reservation, Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Web Interface |
| OTHER |
|---|
| Network Services | Web (HTTP/HTTPS), DNS, DHCP, App Management Ports |
| System Requirements | Modern Browser
Cable/DSL Modem
ISP Subscription |
| Certifications | FCC, CE, RoHS |
| Environment | Operating: 0–40°C
Storage: -40–70°C
Humidity: 10–90% (op), 5–90% (storage) |
| TEST DATA |
|---|
| Transmission Power | CE: <20dBm (2.4GHz), <23dBm (5.15GHz–5.35GHz), <30dBm (5.47GHz–5.725GHz)
FCC: <30dBm (All Bands) |
| Reception Sensitivity | Detailed dBm values listed for 2.4GHz & 5GHz across various modulations |
| PHYSICAL |
|---|
| Dimensions | 260.2 × 135 × 41.6 mm |
| Package Contents | Router, Power Adapter, RJ45 Cable, Quick Installation Guide |
